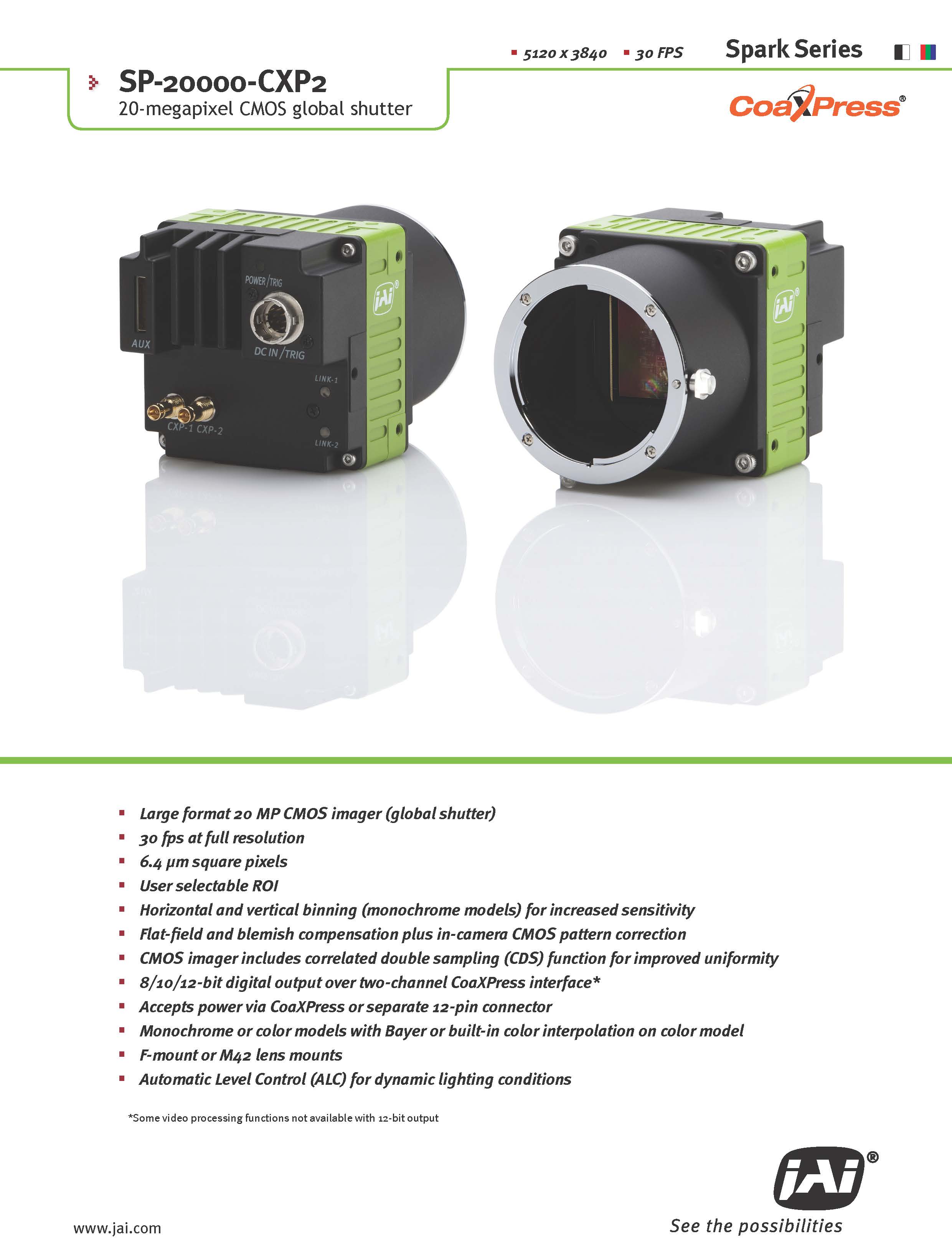

JAI SP-20000-CXP2 2000万CXP工业相机
Large format 20 MP CMOS imager (global shutter)
30 fps at full resolution
6.4 μm square pixels
User selectable ROI
Horizontal and vertical binning (monochrome models) for increased sensitivity
Flat-field and blemish compensation plus in-camera CMOS pattern correction
CMOS imager includes correlated double sampling (CDS) function for improved uniformity
8/10/12-bit digital output over two-channel CoaXPress interface*
Accepts power via CoaXPress or separate 12-pin connector
Monochrome or color models with Bayer or built-in color interpolation on color model
F-mount or M42 lens mounts
Automatic Level Control (ALC) for dynamic lighting conditions
在线咨询
30 fps at full resolution
6.4 μm square pixels
User selectable ROI
Horizontal and vertical binning (monochrome models) for increased sensitivity
Flat-field and blemish compensation plus in-camera CMOS pattern correction
CMOS imager includes correlated double sampling (CDS) function for improved uniformity
8/10/12-bit digital output over two-channel CoaXPress interface*
Accepts power via CoaXPress or separate 12-pin connector
Monochrome or color models with Bayer or built-in color interpolation on color model
F-mount or M42 lens mounts
Automatic Level Control (ALC) for dynamic lighting conditions
