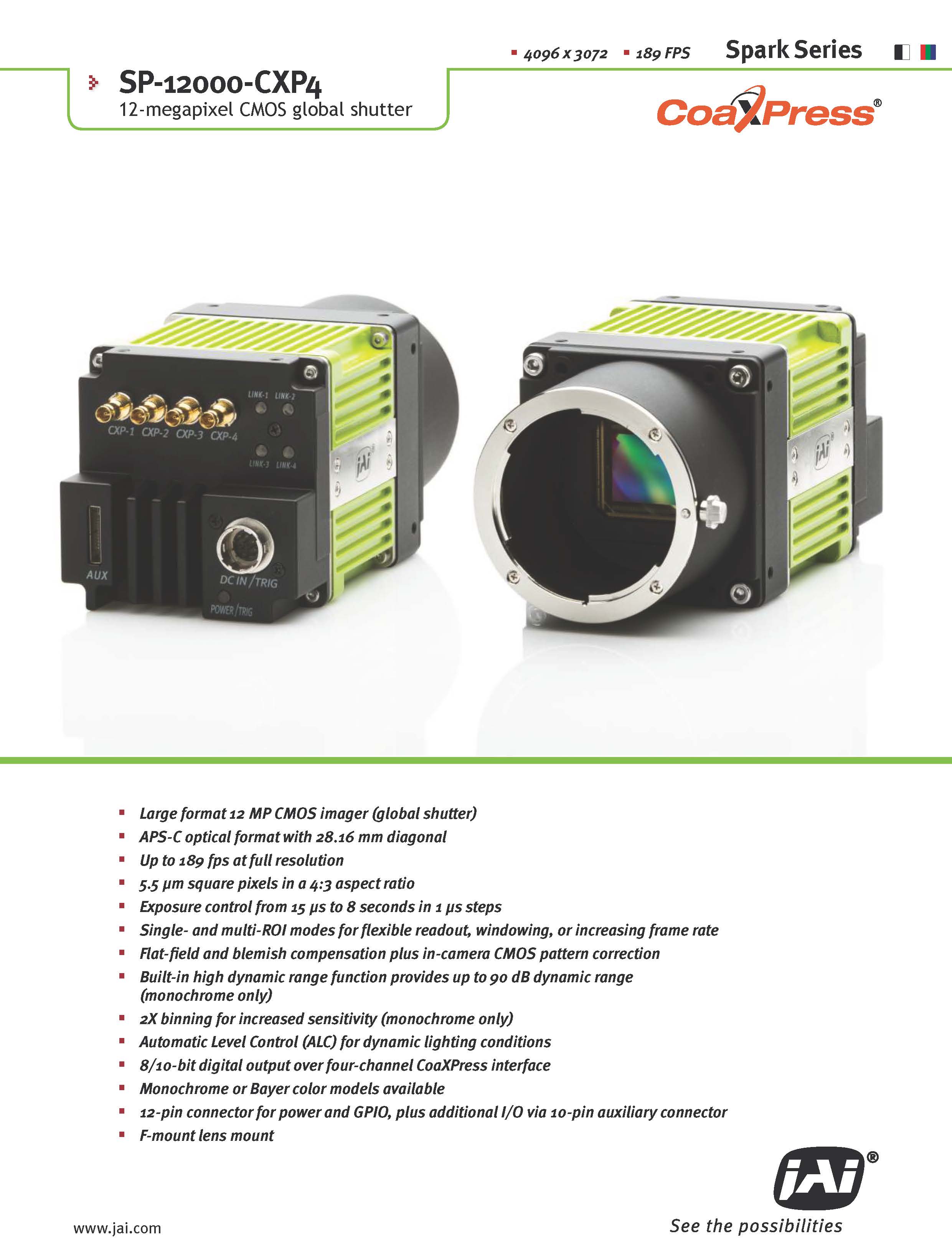

JAI SP-12000-CXP4 1200万CXP工业相机
Large format 12 MP CMOS imager (global shutter)
APS-C optical format with 28.16 mm diagonal
Up to 189 fps at full resolution
5.5 μm square pixels in a 4:3 aspect ratio
Exposure control from 15 μs to 8 seconds in 1 μs steps
Single- and multi-ROI modes for flexible readout, windowing, or increasing frame rate
Flat-field and blemish compensation plus in-camera CMOS pattern correction
Built-in high dynamic range function provides up to 90 dB dynamic range (monochrome only)
2X binning for increased sensitivity (monochrome only)
Automatic Level Control (ALC) for dynamic lighting conditions
8/10-bit digital output over four-channel CoaXPress interface
Monochrome or Bayer color models available
12-pin connector for power and GPIO, plus additional I/O via 10-pin auxiliary connector
F-mount lens mount
在线咨询
APS-C optical format with 28.16 mm diagonal
Up to 189 fps at full resolution
5.5 μm square pixels in a 4:3 aspect ratio
Exposure control from 15 μs to 8 seconds in 1 μs steps
Single- and multi-ROI modes for flexible readout, windowing, or increasing frame rate
Flat-field and blemish compensation plus in-camera CMOS pattern correction
Built-in high dynamic range function provides up to 90 dB dynamic range (monochrome only)
2X binning for increased sensitivity (monochrome only)
Automatic Level Control (ALC) for dynamic lighting conditions
8/10-bit digital output over four-channel CoaXPress interface
Monochrome or Bayer color models available
12-pin connector for power and GPIO, plus additional I/O via 10-pin auxiliary connector
F-mount lens mount
